NDT Defect Analysis Digital Worker

Core Logic

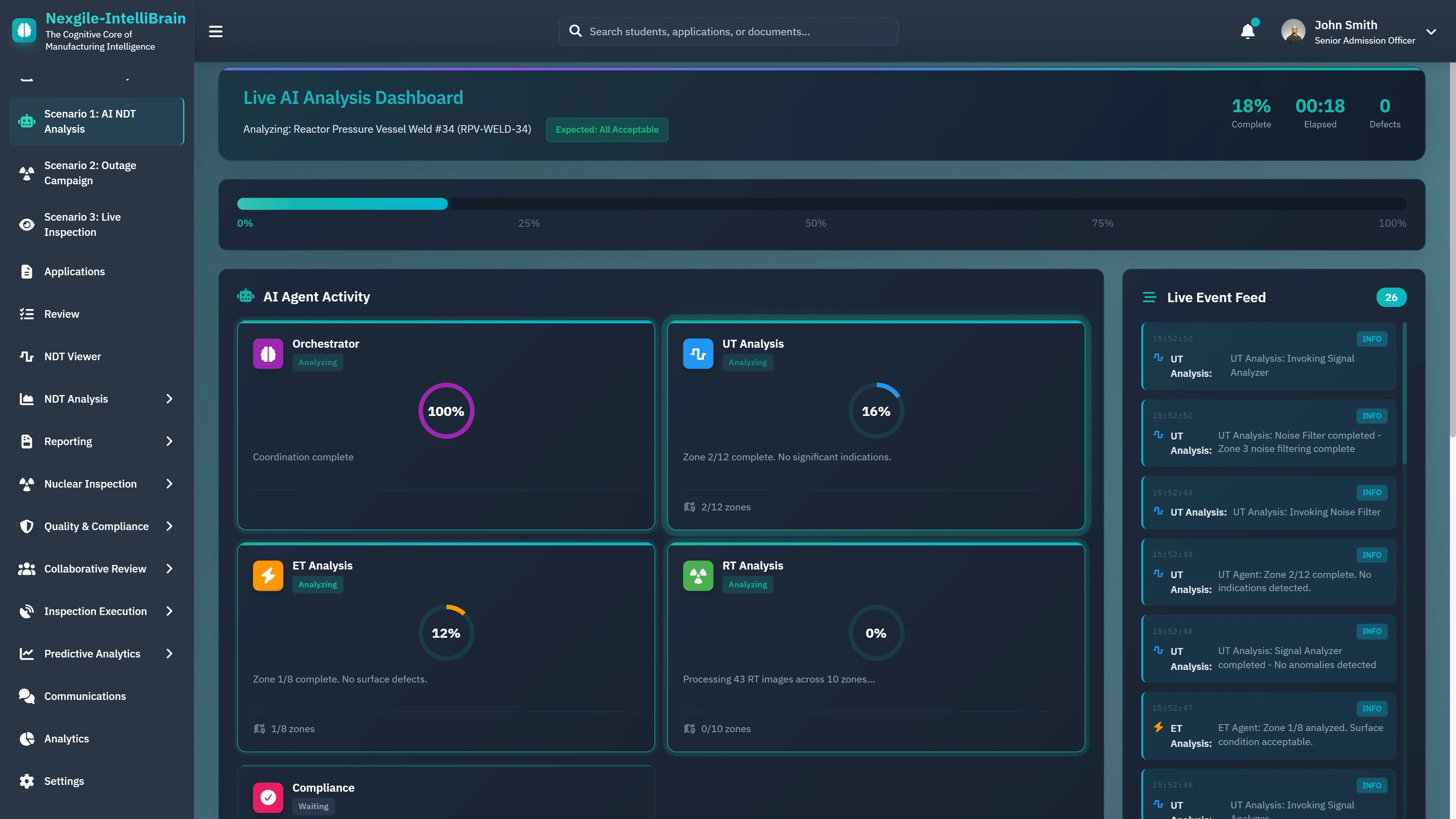

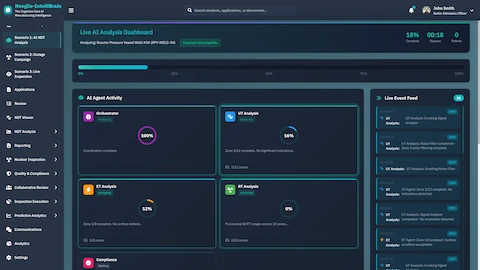

Illustrative workflow design. Validate capabilities, performance, controls and integration requirements before implementation. Coordinates all specialist agents, manages the analysis workflow from data ingestion through report generation, monitors progress across parallel analysis streams, handles task distribution and priority management, and triggers expert escalation when critical defects are detected. Maintains real-time status tracking and ensures all agents complete their analysis phases before proceeding.

Core Logic

Illustrative workflow design. Validate capabilities, performance, controls and integration requirements before implementation. Processes Phased Array UT, TOFD, A-Scan, B-Scan, and C-Scan data using signal morphology analysis, amplitude analysis, and depth measurement techniques. Detects crack signatures through corner trap identification and sharp leading edge patterns. Provides confidence-scored classifications with measurement uncertainties. Automatically flags high-amplitude reflectors exceeding ASME thresholds for expert review.

Core Logic

Illustrative workflow design. Validate capabilities, performance, controls and integration requirements before implementation. Analyzes Eddy Current Array and impedance plane data using phase analysis, conductivity mapping, crack sizing, and surface condition assessment. Processes scan points to identify surface and near-surface defects while filtering benign conductivity variations. Reports surface oxidation, crack indications, and wall thickness variations with severity classifications.

Core Logic

Illustrative workflow design. Validate capabilities, performance, controls and integration requirements before implementation. Processes Digital Radiography, Computed Radiography, and digitized film images using density analysis, pattern recognition, inclusion detection, and porosity mapping algorithms. Identifies volumetric indications through density contrast analysis. Maps porosity clusters and determines if they fall within code-acceptable tolerance limits.

Core Logic

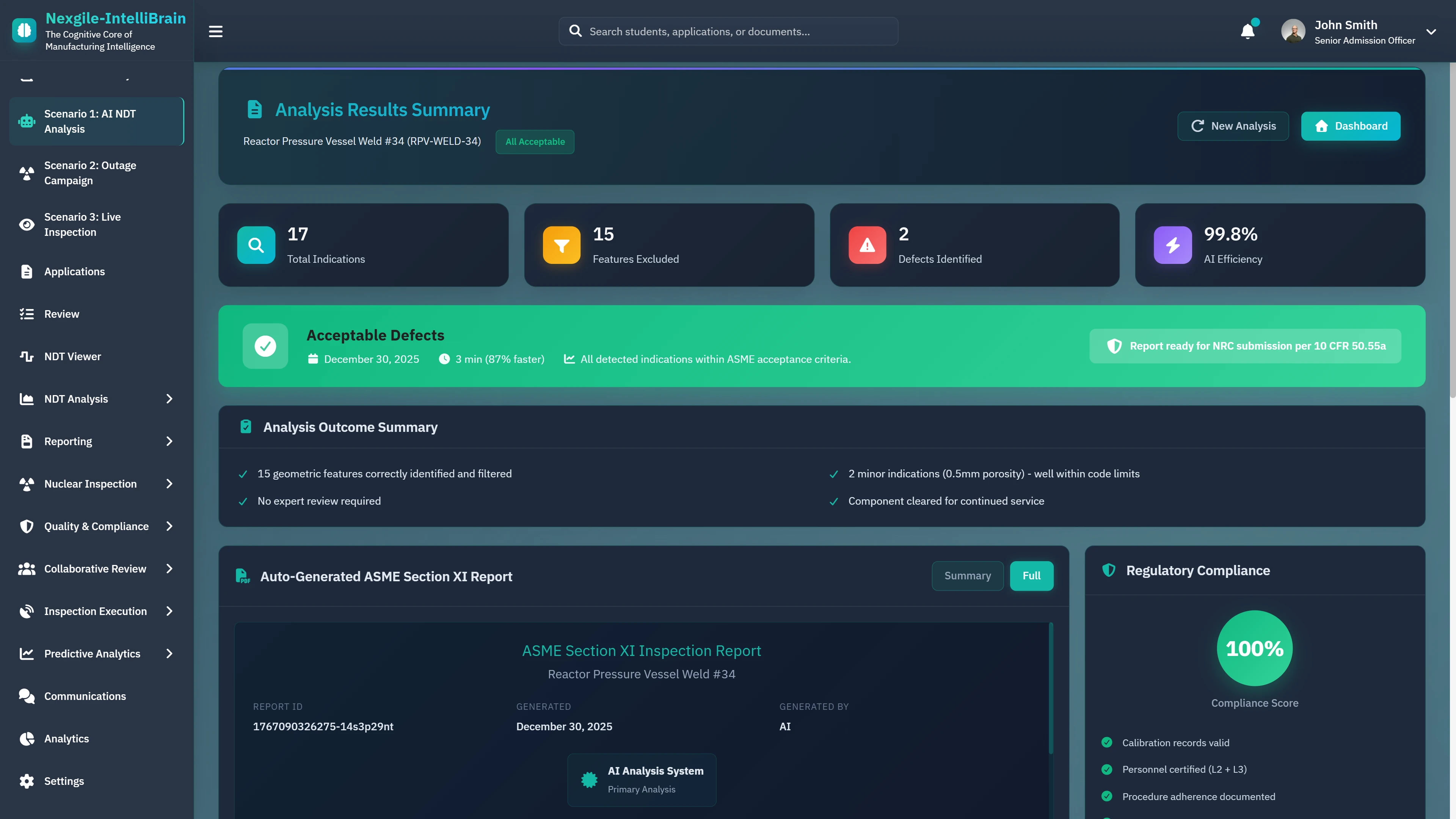

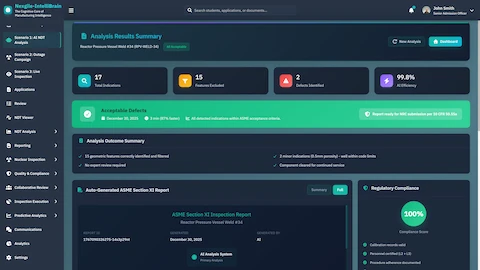

Illustrative workflow design. Validate capabilities, performance, controls and integration requirements before implementation. Validates all detected findings against ASME Section XI Table IWB-3514-1 acceptance standards, NRC 10 CFR 50.55a requirements, and facility-specific procedures. Automatically calculates exceedance percentages, references applicable code sections, generates compliance documentation, and maintains immutable audit trails for regulatory submission.
